DRONE CW-15
CW-15 Long Endurance Battery-operated Small UAV

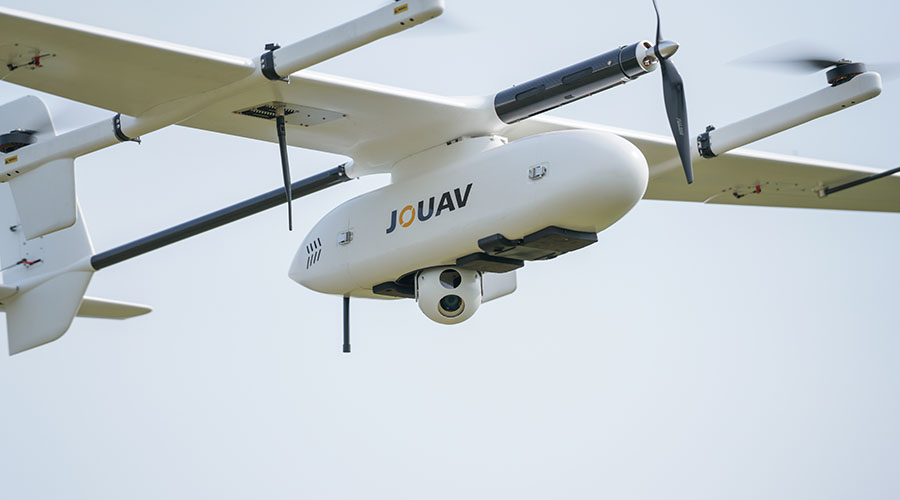

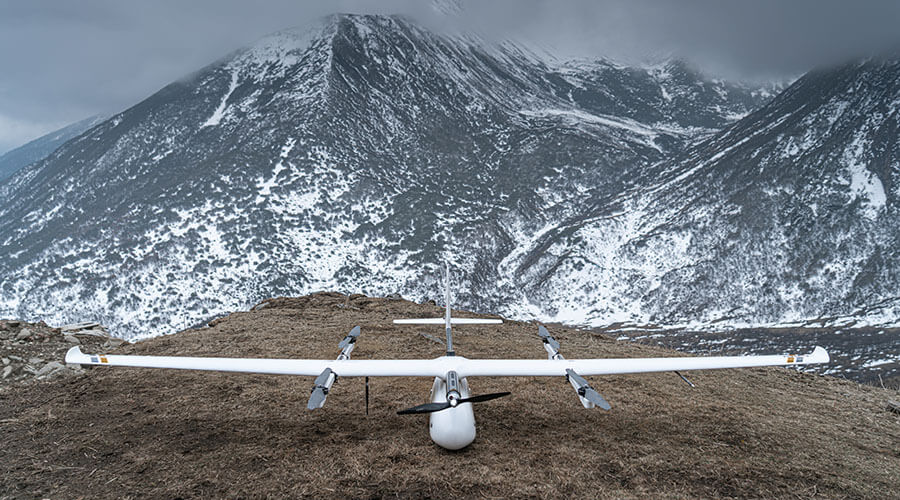

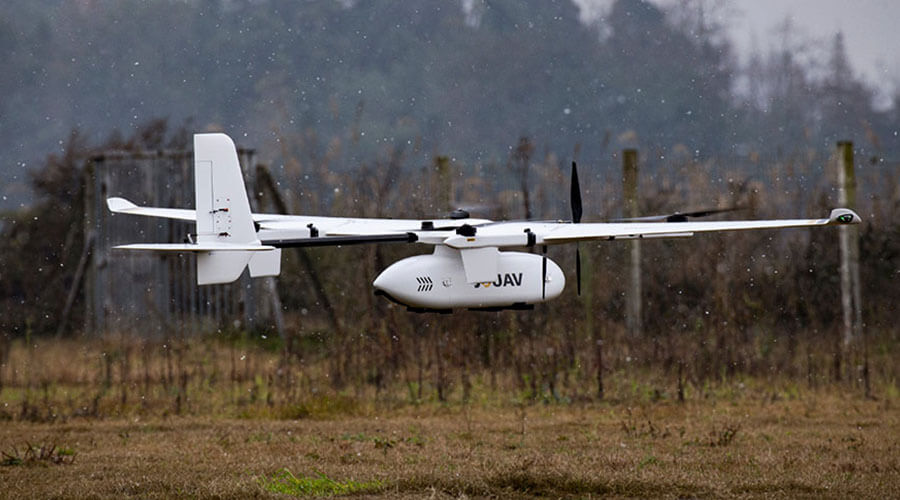

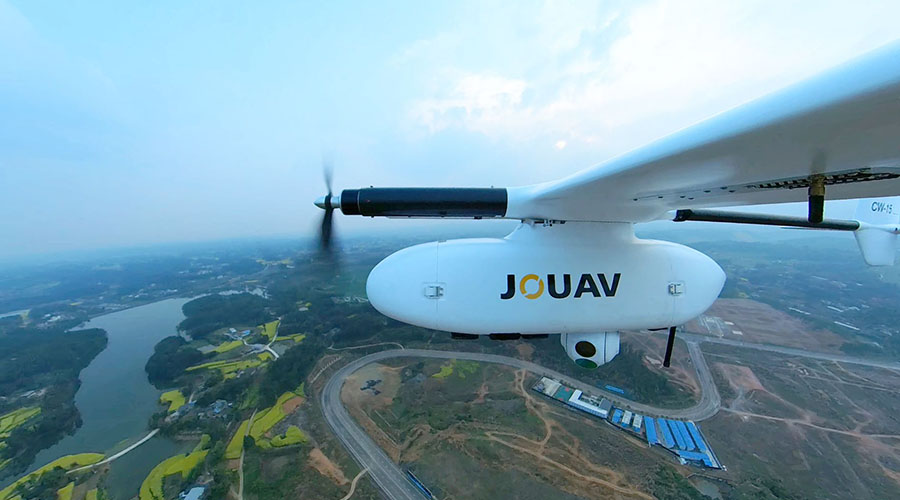

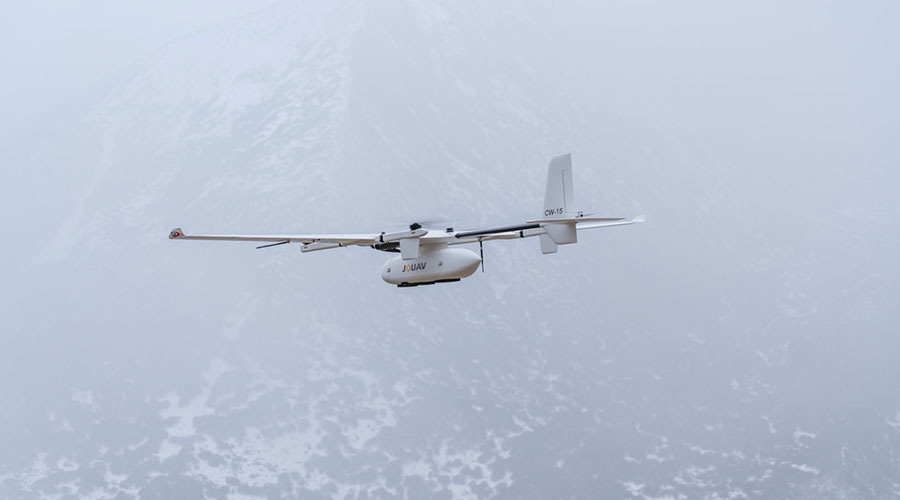

JOUAV CW-15 long-endurance full electric vertical take-off and landing fixed-wing UAV system
CW-15 Overview
JOUAV CW-15 long-endurance full electric vertical take-off and landing fixed-wing UAV system, which brings the disruptive technology innovation in the UAV industry in flight safety, avionics system, overall machine performance, and operation experience.
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
CW-15 SPECIFICATIONS
| Max Flight Time | 180min |
|---|---|
| Cruising speed | 61km/h |
| Max Service Ceiling | 6500m |
| Max Payload | 3kg |

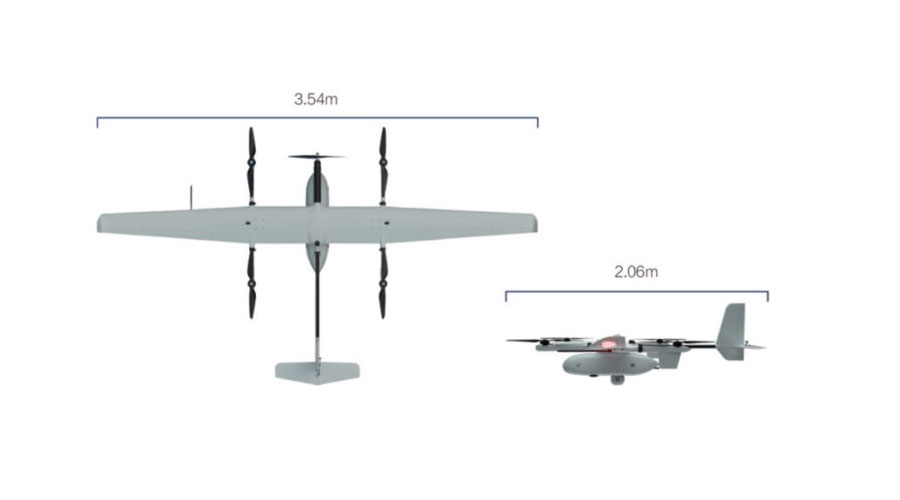

| Fuselage | 2.06 m |
| Wingspan | 3.54 |
| Electro Motor | Low noise, brushless |
| Endurance | 180min |
| Wind Resistance | 10.8-13.8m/s |
| Max Takeoff Altitude | 4500m |
CW-15Accessories
Optional Payloads
JOUAV UAV can carry many types of mission payloads. You can choose different cameras according to the actual mission needs, including LiDAR system, industrial aerial camera, oblique camera system, gimbal system and SAR. Simple and flexible, multi-purpose.
Lightweight 3-axis gimbal camera with 30X optical zoom and thermal sensors
Ground Control Stations
JOUAV offers handheld, portable and modular vehicle ground control station. You can choose different control devices according to the different environment and task.
An all-in-one handheld UAV ground control station for controlling unmanned vehicles and payloads
A portable dual-screen ground control station to control drone flight, recovery, and payloads
Optional Payloads
JOUAV UAV can carry many types of mission payloads. You can choose different cameras according to the actual mission needs, including LiDAR system, industrial aerial camera, oblique camera system, gimbal system and SAR. Simple and flexible, multi-purpose.
Lightweight 3-axis gimbal camera with 30X optical zoom and thermal sensors
Ground Control Stations
JOUAV offers handheld, portable and modular vehicle ground control station. You can choose different control devices according to the different environment and task.
An all-in-one handheld UAV ground control station for controlling unmanned vehicles and payloads
A portable dual-screen ground control station to control drone flight, recovery, and payloads
