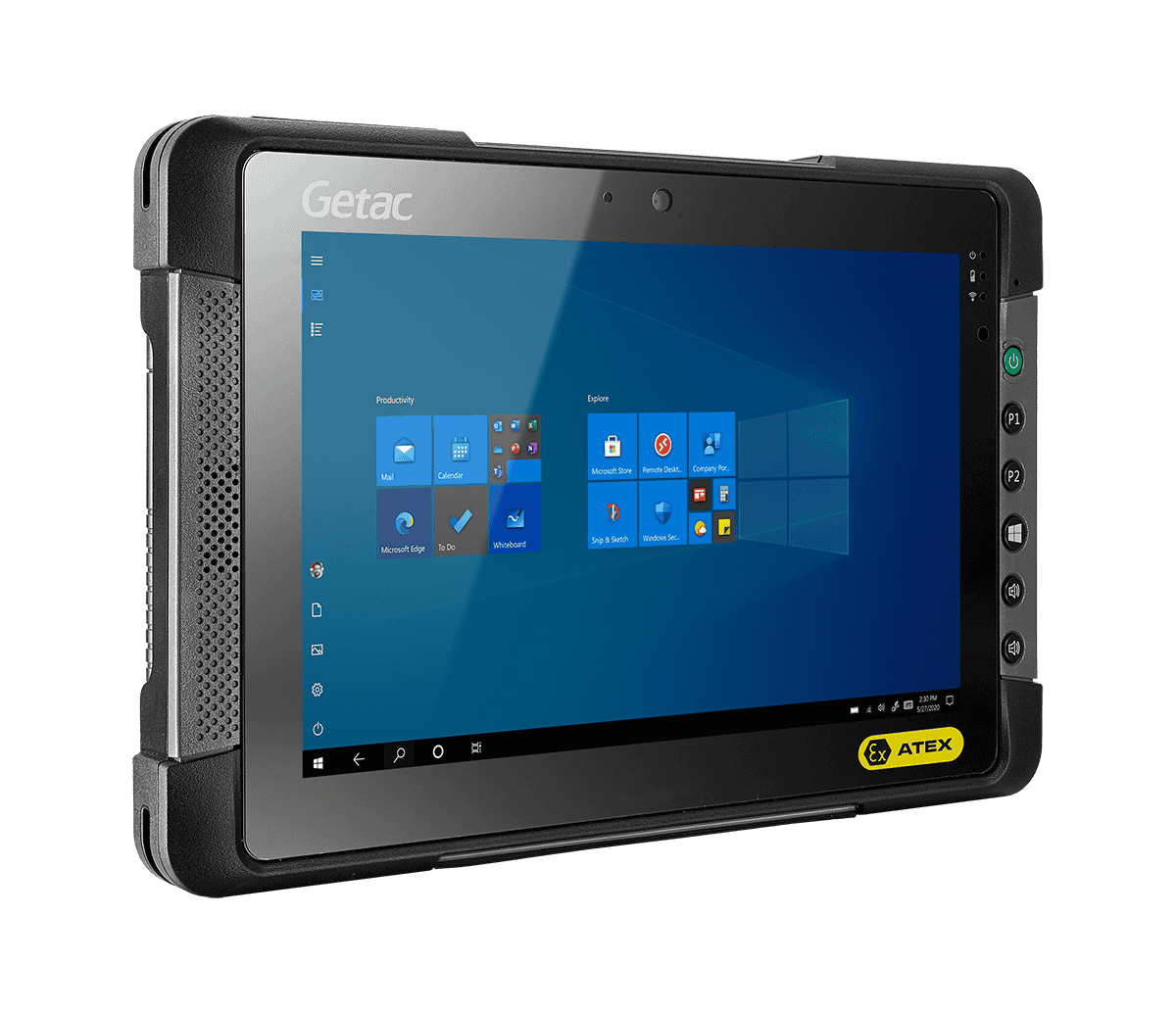

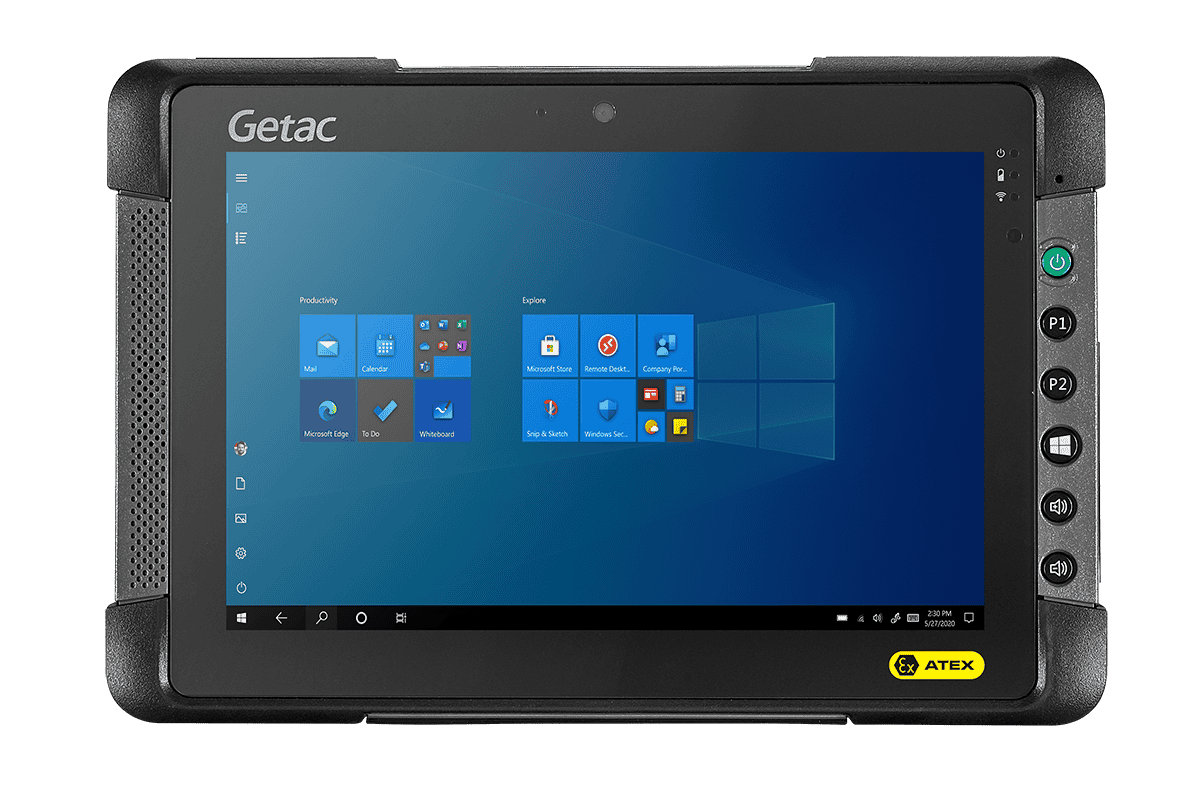

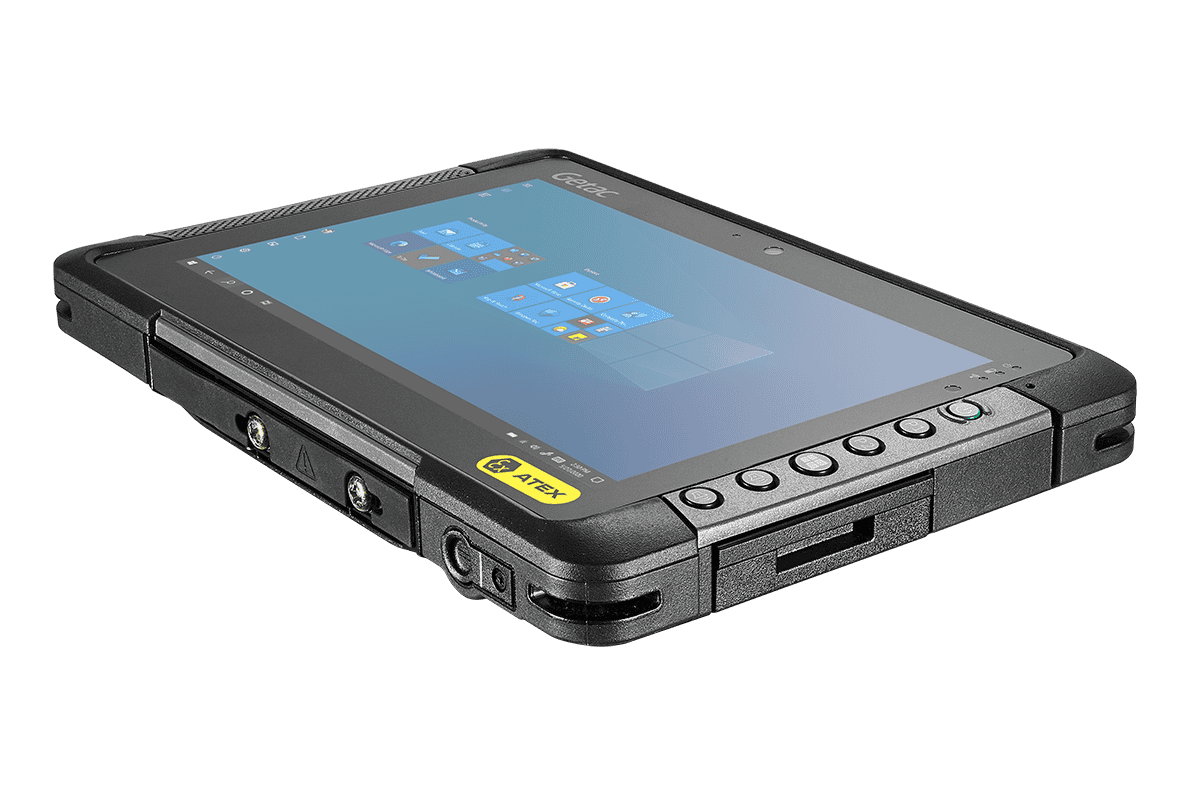

Getac T800-EX
The Getac T800-EX fully rugged tablet is always there when you need it. Its 8.1" screen is just the right size to get things done and its thin, ergonomic design allows you to hold it comfortably in one hand.

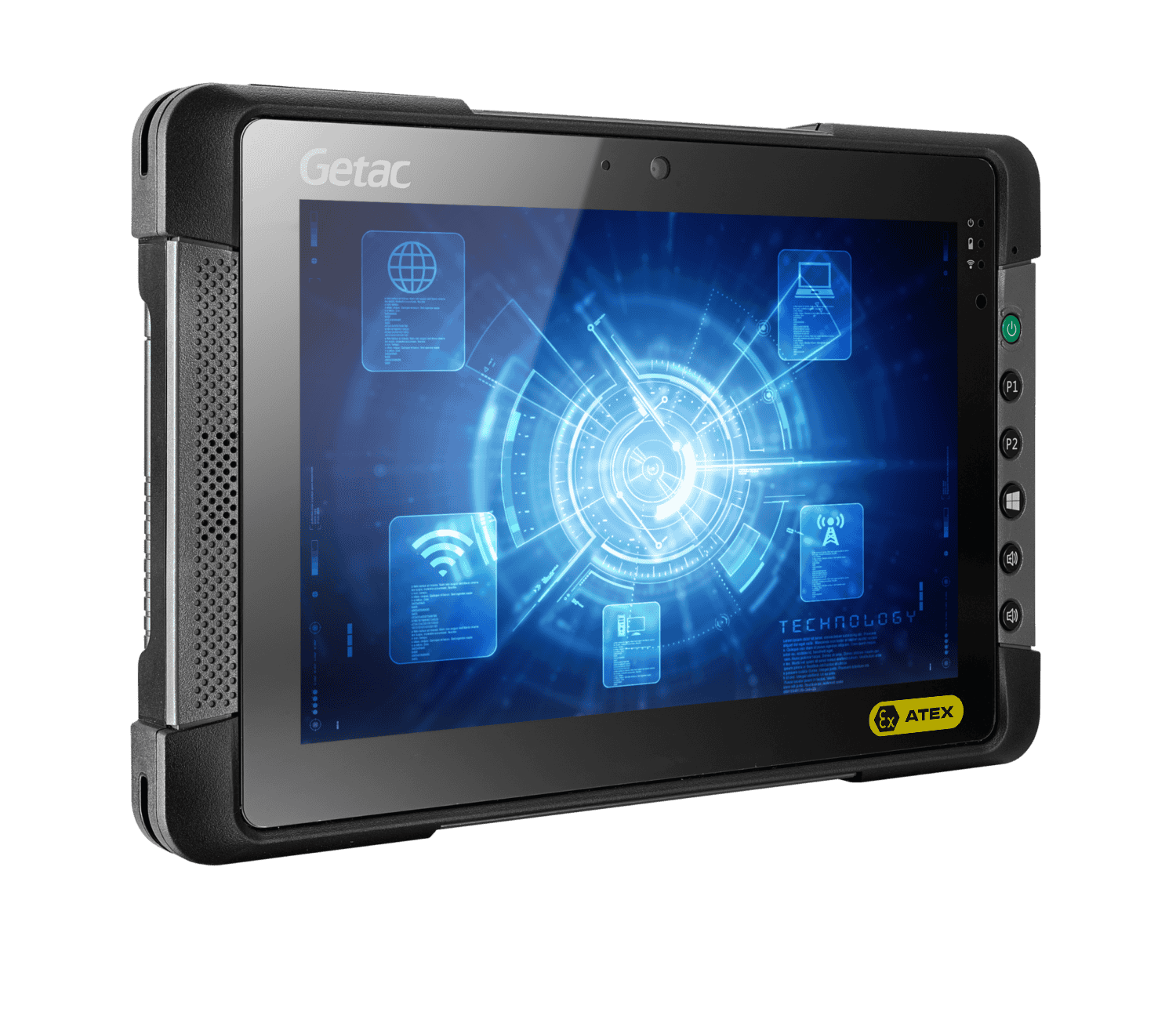

Powerful, Yet Efficient
Inside the T800-EX, we packed an incredible amount of power and technology. Built with the latest Quad-core Intel® Atom™ x7-Z8750 1.6 GHz processor. The T800-EX provides all of the performance you need to get things done, with no compromise to battery life.

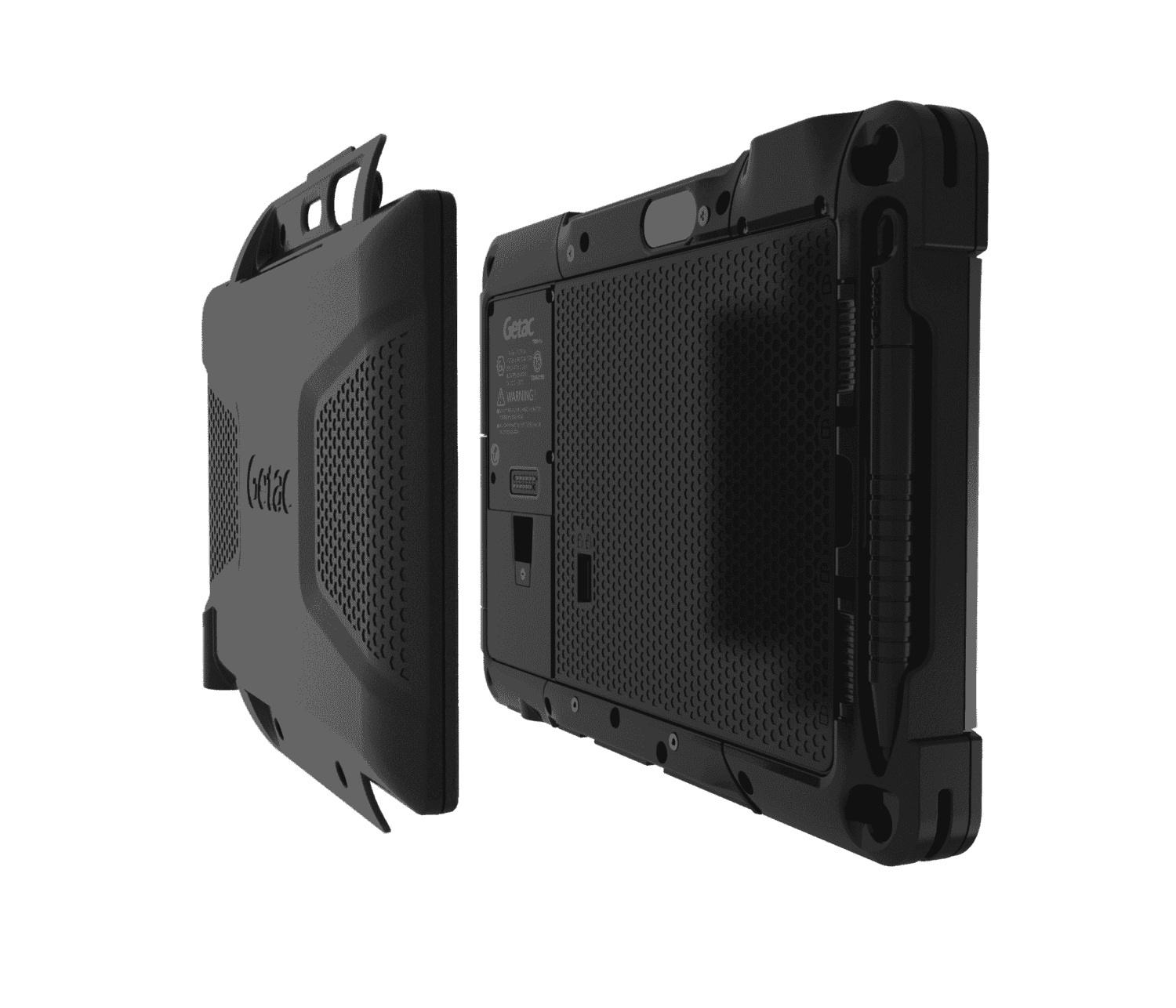

SnapBack Add-ons
SnapBack Add-ons We designed the T800-EX for expandability with our unique SnapBack add-ons. Integrated as an extension to the T800-EX, you can add an extended battery. And they easily snap on or off — no tools necessary.

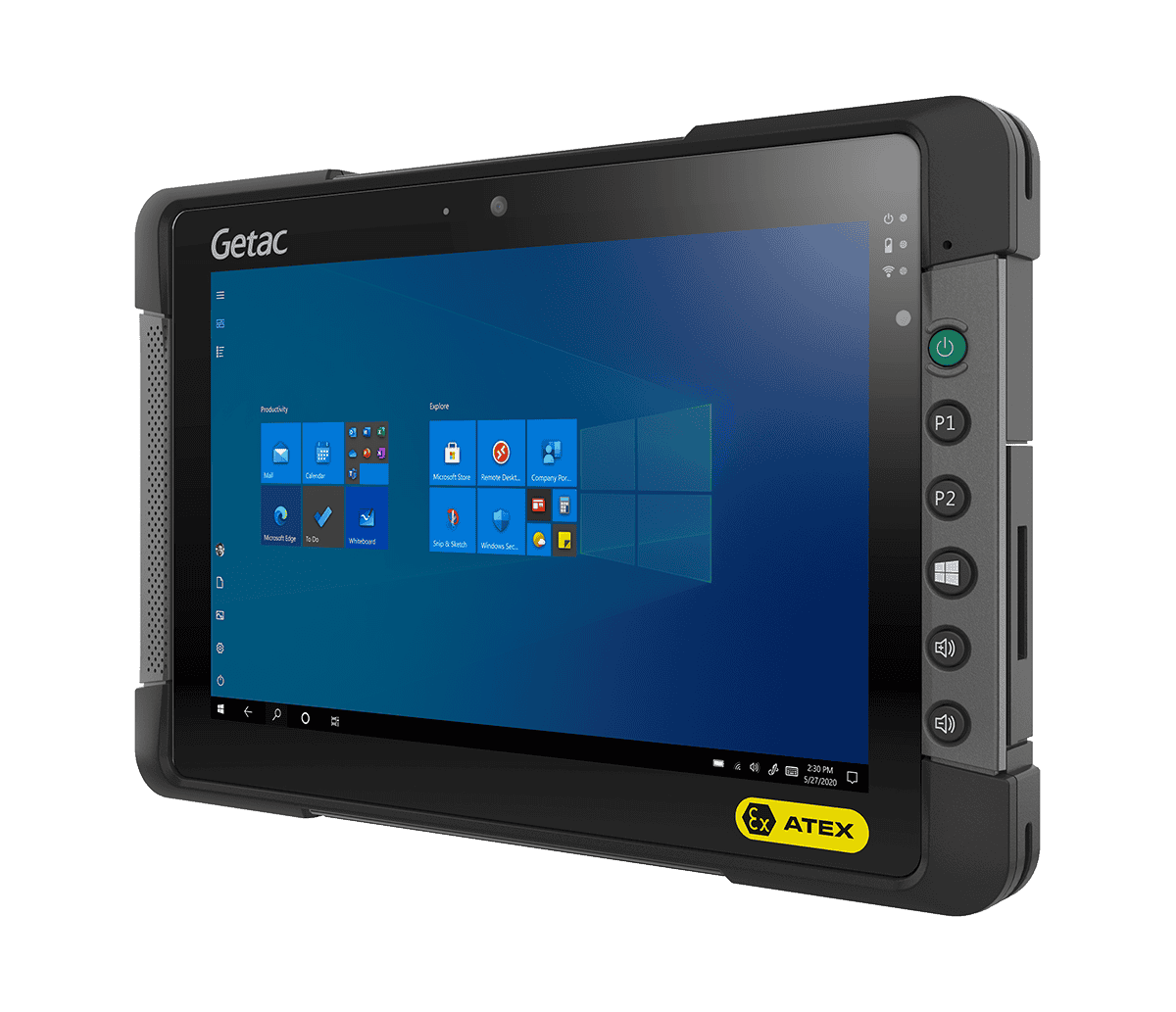

One Handed Comfort
Designed to fit ergonomically in one hand, the new T800-EX tablet is only 24mm thick, less than 23 cm x 16 cm in size, weighs just 910g and is designed to easily fit in just one hand.

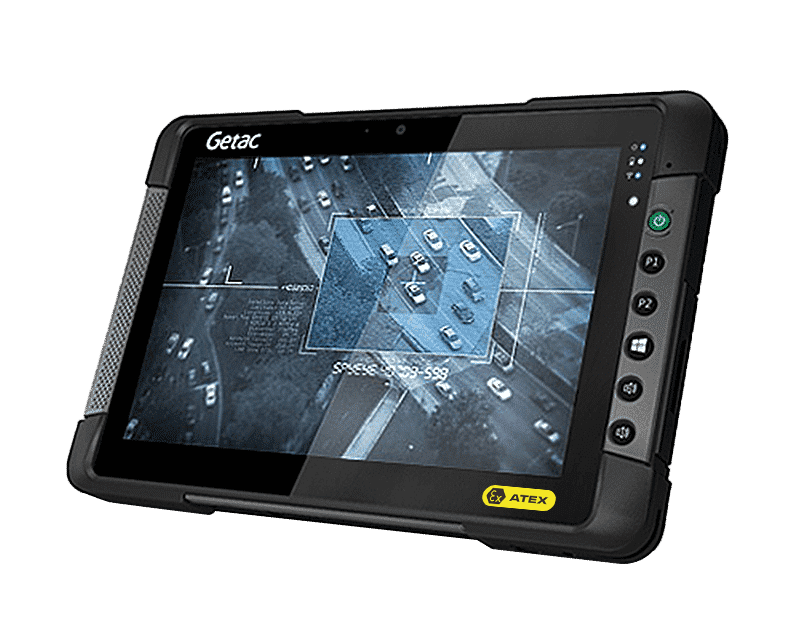

Lasting Power
The T800-EX fully rugged tablet delivers remarkable battery life on a single charge. Additionally, you can have endless SnapBack battery add-ons at the ready for potentially infinite, battery life. This allows you to keep working without ever shutting down your apps or the Windows OS..

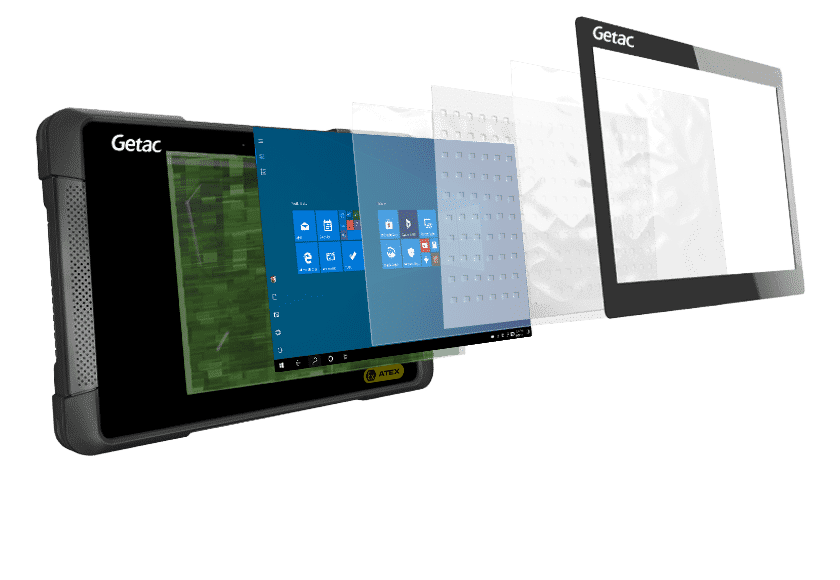

Lumibond 2.0: Better, Brighter, Stronger.
Convenience also extends to the T800-EX’s security features, which offer all the measures expected of an industrial device without disruption, hindrance, or friction with your work. Gone are the T800-EX’s battery and storage drive covers, enabling easy tool-less removal of the hot-swappable batteries and the SSD for data sharing and security. Added is a new camera privacy shutter, while the expansion slot has been relocated from the device’s back to its side, making assorted multifactor security measures, such as fingerprint scanning and RFID scanning, more easily accessed.
Getac T800-EX Features
- Windows 10 Security
- Trusted Platform Module 2.0
- Smart Card Reader
- NFC/RFIC Reader
T800-EX TECHNICAL SPECIFICATIONS
| Operating System | Windows 11 Pro |
|---|---|
| Mobile Computing Platform |
Intel® Core™ i5-1135G7 Processor Max. 4.2GHz with Intel® Turbo Boost Technology - 8MB Intel® Smart Cache Platform options: Intel®Core™ i5-1145G7 vPro® Processor Max. 4.4GHz with Intel® Turbo Boost Technology - 8MB Intel® Smart Cache Intel® Core™ i7-1165G7 Processor Max. 4.7GHz with Intel® Turbo Boost Technology - 12MB Intel® Smart Cache Intel® Core™ i7-1185G7 vPro® Processor Max. 4.8GHz with Intel® Turbo Boost Technology - 12MB Intel® Smart Cache |
| VGA Controller | Intel® UHD Graphics |
| Display |
11.6" Wide Viewing Angle TFT LCD FHD (1920 x 1080) Protection film 1,000 nits LumiBond® display with Getac sunlight readable technology Capacitive multi-touch screen |
| Storage & Memory |
8GB DDR4 Optional: 16GB / 32GB DDR4 256GB PCIe NVMe SSD Optional: 512GB / 1TB / 2TB PCIe NVMe SSD |
| Keyboard |
Power button 4 tablet programmable buttons |
| Pointing Device |
Touchscreen - Capacitive multi-touch screen - Optional: Dual mode touchscreen (multi-touch and digitizer) |
| Expansion Slot |
Optional: Smart card reader Optional: 1D/2D imager barcode reader, or USB 2.0 port, or LAN (RJ45), or serial port + LAN (RJ45) i Optional ii: HF RFID Reader, or Fingerprint Reader |
| I/O Interface |
5M webcam x 1 iii 8M pixels auto focus rear camera x 1 Audio in/out combo x 1 DC in Jack x 1 Thunderbolt™ 4 Type-C x 1 USB 3.2 Gen 2 Type-A x 1 Docking connector x 1 Optional: SIM card slot x 1 (Micro-SIM, 3FF) iv Optional: Windows Hello face-authentication FHD camera (front facing) x 1 iii Optional: RF antenna pass-through for GPS, WWAN and WLAN |
| Dimension (W x D x H) & Weight |
314 x 207 x 25mm (12.4" x 8.15" x 0.98") 1.52kg (3.35lbs) viii |

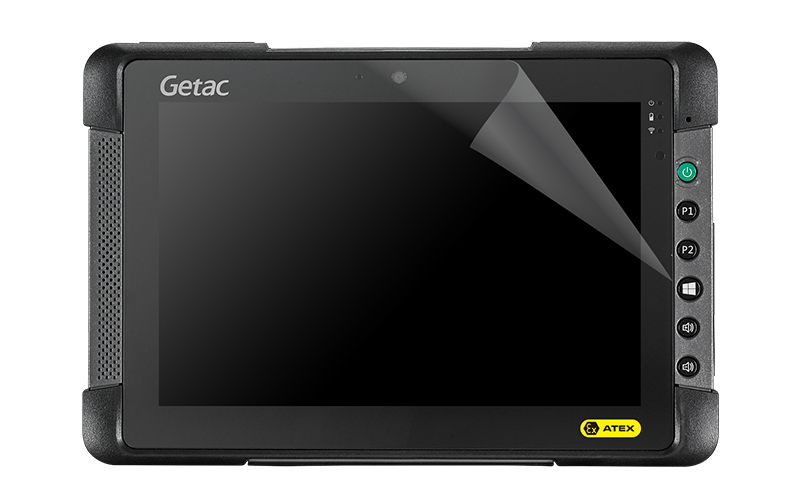

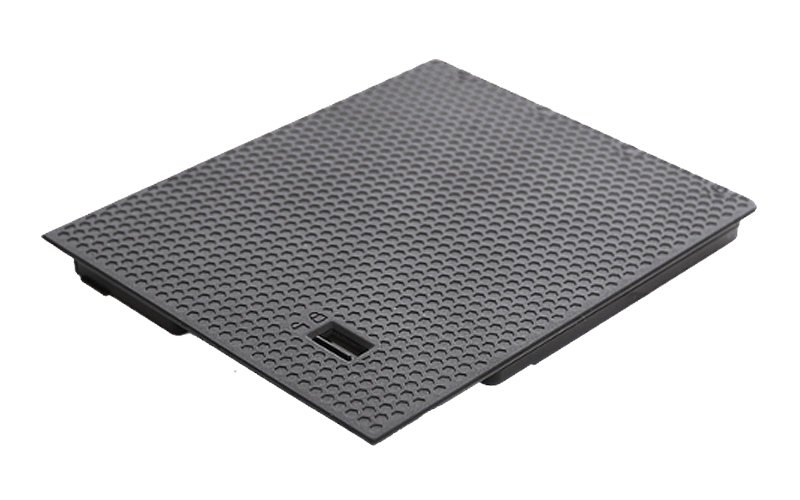

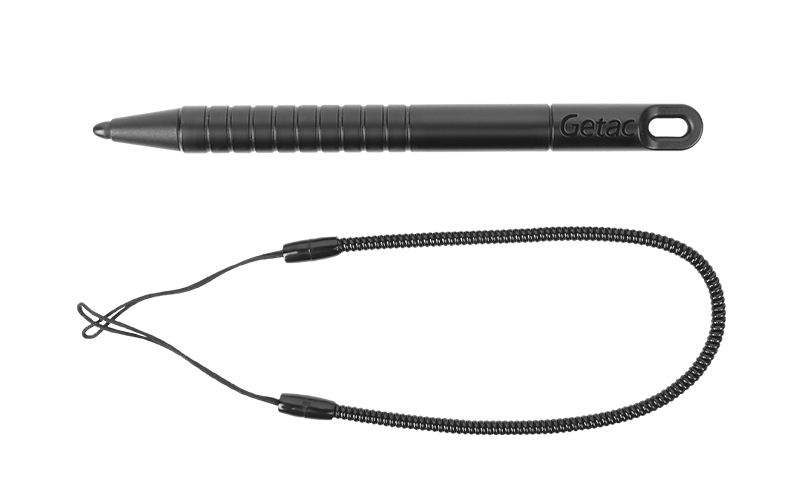

| Accessories | Battery (11.4V, typical 2680mAh; min. 2640mAh) AC adapter (90W, 100-240VAC, 50 / 60Hz) Capacitive stylus with tether Optional: Carry bag Battery (11.4V, typical 2680mAh; min. 2640mAh) High capacity Li-ion battery (11.1V, typical 4200mAh; min.4080mAh) Multi-Bay charger (Dual-Bay) Multi-Bay charger (Eight-Bay) AC adapter (90W, 100-240VAC, 50 / 60Hz) Office dock AC adapter (90W, 100-240VAC) MIL-STD-461 AC adapter (90W, 100-240VAC) DC-DC vehicle adapter (120W, 11-32VDC) Digitizer pen Capacitive stylus with tether Protection film Hard handle Hand strap Shoulder strap (2-point) Shoulder harness (4-point; handsfree) Detachable keyboard Vehicle cradle xiv Vehicle dock xiv Office dock Spare SSD kit 100W Type-C adapter Getac rugged keyboard |
1D/2D imager barcode reader, or USB (USB 2.0) port, or Serial port + LAN are mutually exclusive options.
HF RFID reader and fingerprint reader are mutually exclusive options
5M webcam and optional Windows Hello face-authentication FHD camera (front-facing) are mutually exclusive options.
Units with 4G LTE option comes with an embedded SIM card slot.
Bluetooth performance and connectable distance may be subject to interference with the environments and performance on client devices, users may be able to
reduce effects of interference by minimizing the number of active Bluetooth wireless devices that is operating in the area.
One physical SIM card slot and one eSIM. Network service may vary depending on local telecommunication providers.
13.56MHz HF RFID reader (ISO 15693, 14443 A/B, Mifare and FeliCa™ compliant).
Weight and dimensions vary from configurations and optional accessories; optional high-capacity batteries add approx. 6mm (H), 0.24kg.
MIL-STD-461 90W AC adapter sold separately.
Available with limited configurations and environment conditions.
Tested by an independent third-party test lab following MIL-STD-810H.
Available when barcode reader option is selected.
Models require either embedded or standalone GPS module.
Gamber Johnson and Havis vehicle docks are e-mark certified.
Support GPS, GLONASS, Galileo, BeiDou and QZSS. Only available in US, UK, EU, Australia and New Zealand.
Information provided herewith is for reference only, available specification shall be subjected to quotation by request.
